Rheem Water Heater Leaking Replacement @ Faber Crest
Replacement of Rheem EHG-30 Water Heater to resolve heater problems end of service life.

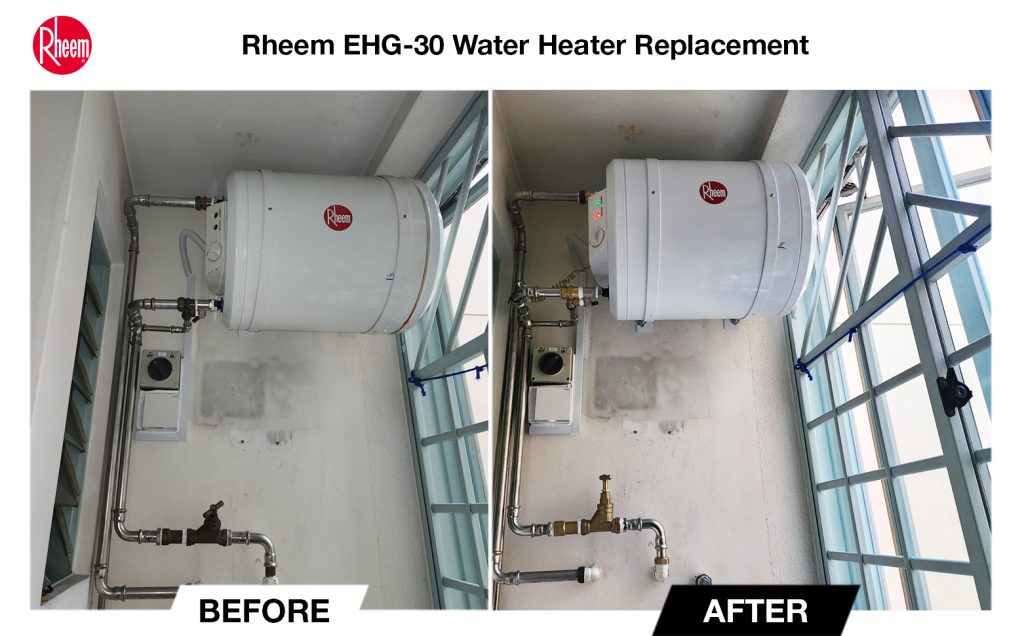

Before: Rheem EHG-30
After: Rheem EHG-30
Date Of Replacement: 17 Oct 2024
Project Location: Faber Crest

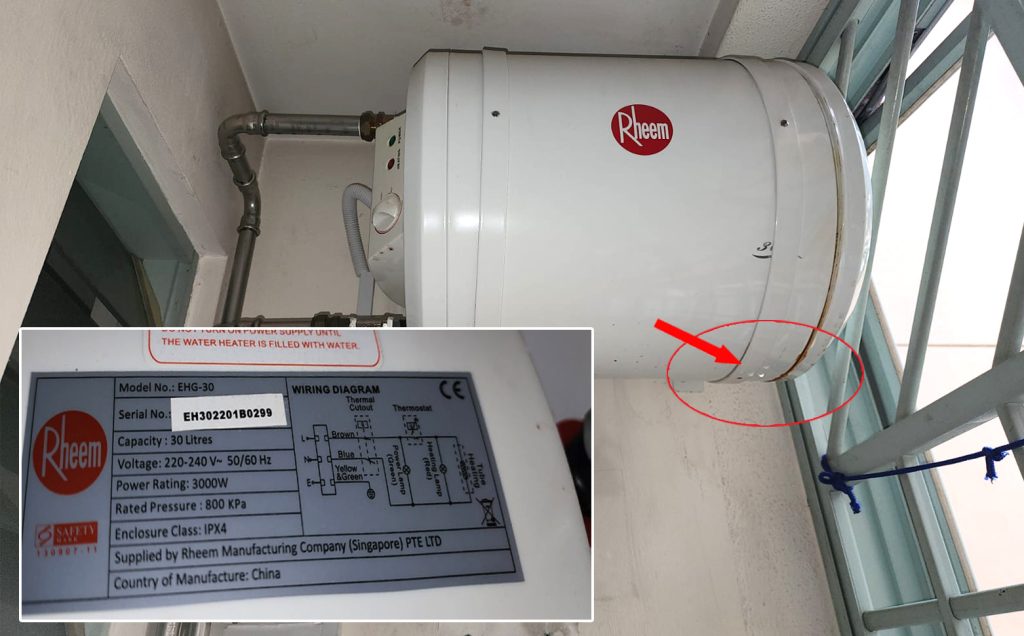

Before Replacement:
Replacement of Rheem EHG-30 Water Heater to resolve heater problems end of service life.

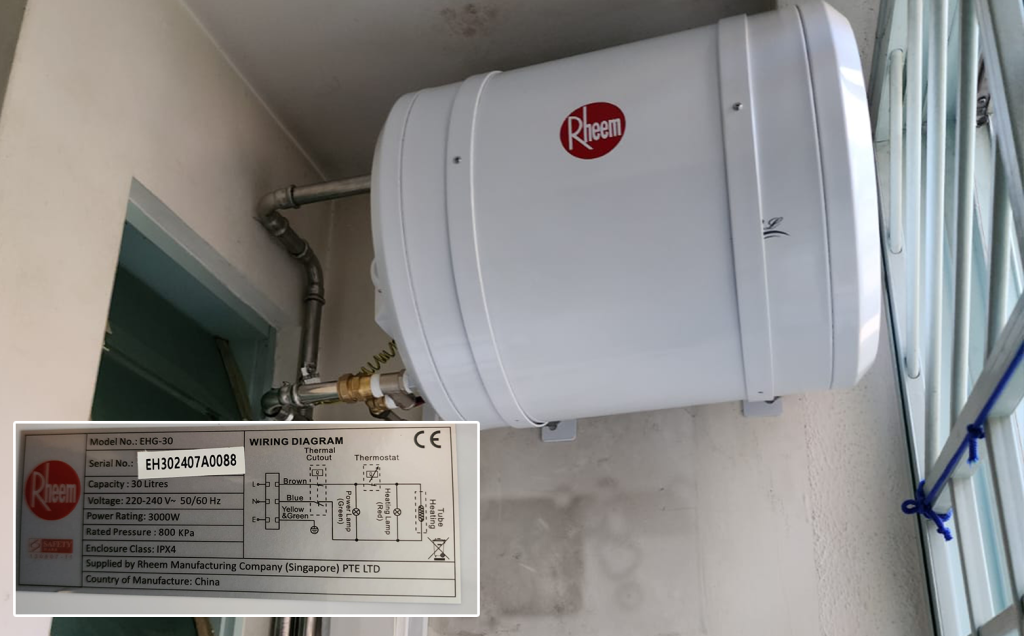

After Replacement:
Rheem EHG-30 Water Heater is the new installation. All pipe works connecting to the heaters are stainless steel. Following the manufacturer’s specifications, a new approved stop valve and double-check valves are employed. Such will comply with PUB Regulations. Our Licensed Plumber has supervised and approved the installation. There is a 1-year warranty by Homeone for this installation on top of the warranty provided by the manufacturer.
Case Study: Rheem
A homeowner at Parc Oasis reported a Rheem water heater leaking from the inner tank, which was beyond repair. The unit was under the manufacturer’s warranty, and the homeowner provided a replacement unit.
Our role was to inspect the existing installation for compliance and execute the necessary replacement.
Inspection Findings
Inner Tank Leaking; The water heater’s inner tank was leaking and beyond repair.
Tank Under Manufacturer Warranty; The homeowner had successfully claimed the warranty, and a new Rheem EHG-30 unit was provided for installation.
– No Double Check Valve and Electrical Bonding; The existing installation lacked a double check valve and electrical bonding, which are required for compliance.
Replacement work scope:
- Supply of pipe and fittings
- Removal of the old Rheem water heater.
- Installation of a double check valve and electrical bonding to meet regulatory requirements.
- Installation of the new Rheem unit (supplied by the homeowner).
- System testing and commissioning to ensure proper operation.
- Worksite housekeeping to maintain cleanliness and safety.
- Documentation and PUB submission for compliance verification.
Our PUB Licensed Plumber has endorsed that work is done in accordance with the conditions stated below:
- All water service installations must be in accordance with the Public Utilities (Water Supply) Regulations, Singapore Standards 636 for Water Services, and all other relevant statutory requirements.
- The proposed works shall not adversely affect the existing water supply reticulation system.
- The proposed water storage heater is installed in accordance with the specifications and requirements of the manufacturer.
- The installation of double-check valves is safe and effective in preventing backflow and the back-siphonage of water from the storage water heater through the heater inlet pipe, and will be safe for use.
Conclusion:
The Rheem water heater leaking issue was successfully resolved with a fully compliant installation. By addressing the missing double check valve and electrical bonding, we ensured a safe and regulation-approved setup. The homeowner was provided with complete documentation, including the PUB Approval Letter, certifying compliance with Singapore’s regulatory standards.
